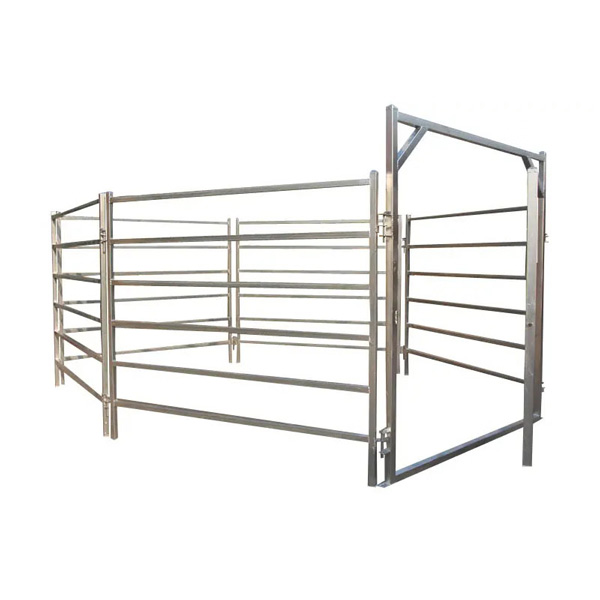

A durable, modular livestock containment system made from superior hot-dip galvanized steel, designed for rapid installation and efficient handling in demanding ranch environments.

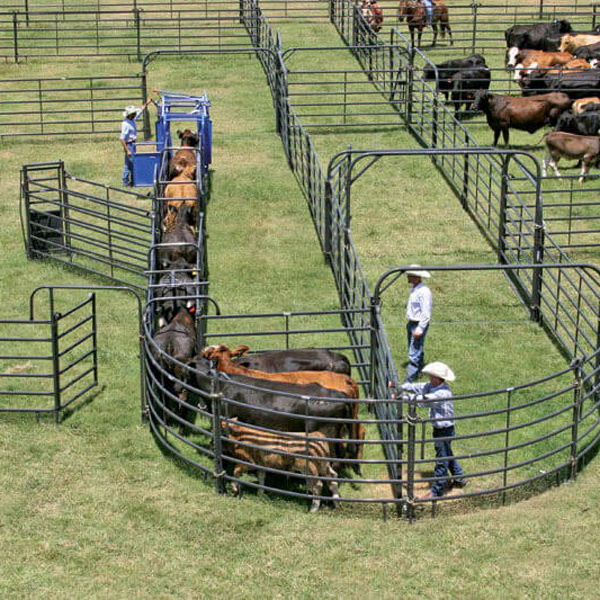

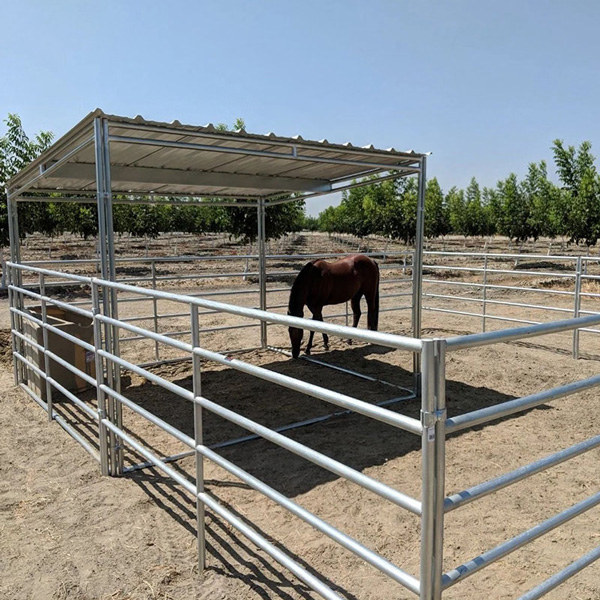

Corral Panels are engineered for professional livestock management, penning, and yard construction. Manufactured from superior quality low-carbon steel with hot-dip galvanized tubes, the system delivers long-term corrosion resistance and structural strength. These panels are designed for rapid installation without the need for ground excavation or concrete foundations, enabling flexible layouts and easy relocation.
· Robust Construction: Fabricated with hot-dip galvanized steel tubes for superior durability and all-weather resistance.

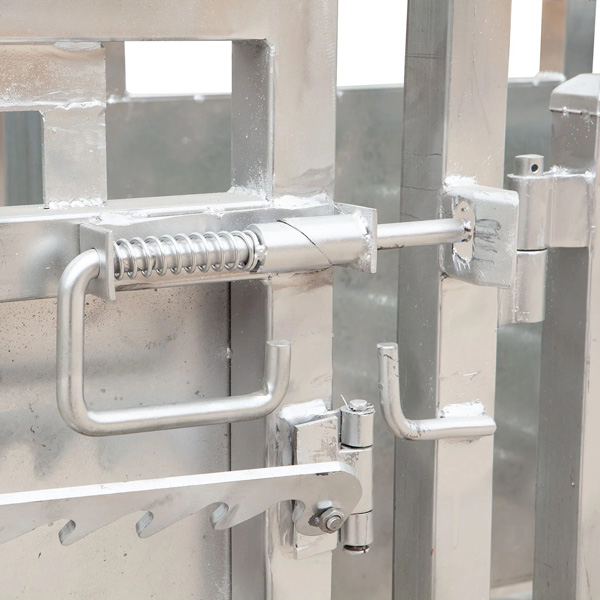

· 360-Degree Full Welding: Every weld point is fully welded and protected with epoxy paint to enhance joint integrity.
· Animal Safety Design: Features smooth welds and rounded corners to protect livestock from injury during handling.
· Flexible Configuration: Available in multiple tube profiles, including Round, Square, and Oval styles, to suit different livestock needs.
· Highly Customizable: Dimensions such as height, length, rail quantity, and tube wall thickness can be tailored to specific operational requirements.
· Material: Superior quality low carbon steel with hot dip galvanized tubes.
o Height: 1.2m, 1.5m, 1.8m, or customized (Popular: 1.5m to 1.8m).
o Length: 2.1m, 3.0m, 3.6m, 4.2m, 4.8m, or customized (Popular: 2.1m or 3.6m).
o Round Style: 32mm, 38mm, 42mm, 48mm, 60mm O.D. (Popular: 38mm).
o Square Style: 40x40mm, 50x50mm, etc. (Popular: 50x50mm).
o Oval Style: 30x60mm, 40x80mm, etc. (Popular: 40x80mm).
o Wall Thickness: 1.2mm, 1.5mm, 1.8mm, 2.0mm, etc. (Popular: 1.5mm to 2.0mm).
o Rail Quantity: 4, 5, 6, or 7 rails (Popular: 5 to 6 rails).
· Surface Treatment: Painting, powder coated, or hot dip galvanized.

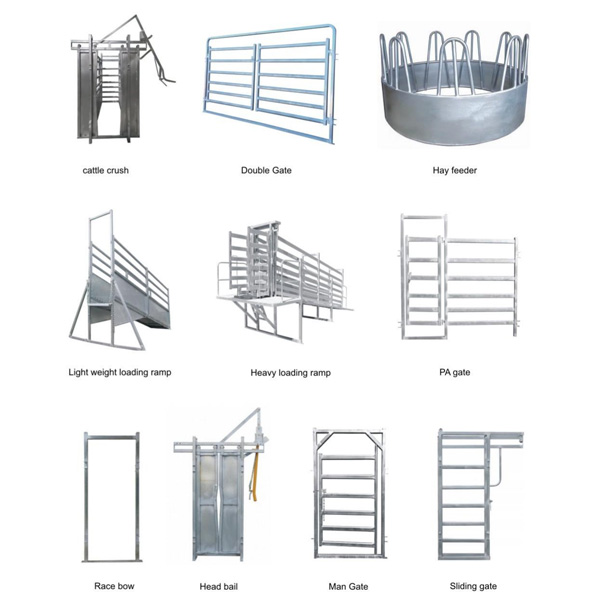

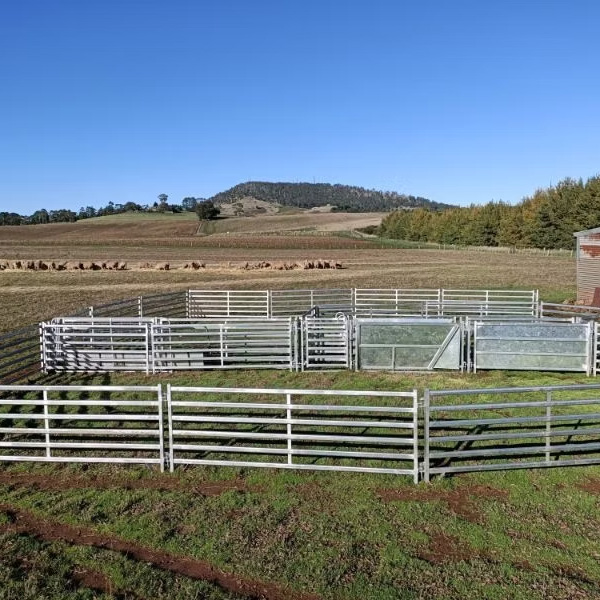

Product Categories & Components To build a functional ranch or feedlot, our corral panels seamlessly integrate with the following professional components:
· Double Gate: Large access points for vehicles or large groups of livestock.
· Sliding Gate: Space-saving gates that slide horizontally, ideal for narrow raceways.

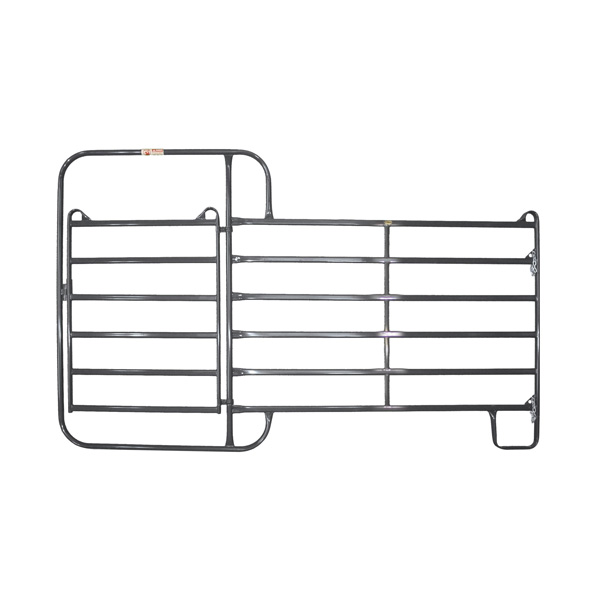

· Man Gate: A small pedestrian gate built within a frame for easy operator access.
· PA Gate: Pedestrian Access gates ensuring safe entry without opening large livestock sections.

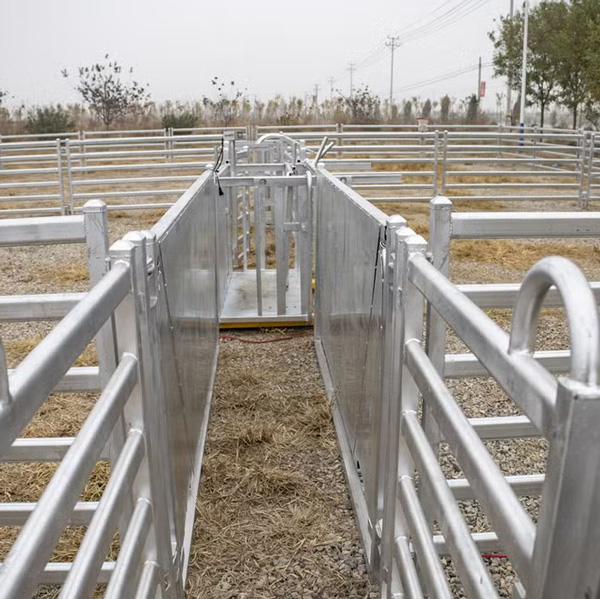

· Cattle Crush: A heavy-duty manual or hydraulic squeeze chute to safely restrain cattle for treatment.
· Head Bail: A front-end restraint unit used to hold the animal's head securely.
· Race Bow: Overhead frames used to maintain the width and stability of livestock raceways.
· Loading Ramps (Light & Heavy Duty): Height-adjustable ramps designed for different vehicle sizes and stock densities.
· Hay Feeder: Circular or square bale feeders designed to minimize feed waste and provide 360-degree access.
