High-performance industrial flooring and structural panels available in high-strength Steel or corrosion-resistant FRP, designed for platforms, drainage covers, and demanding structural environments.

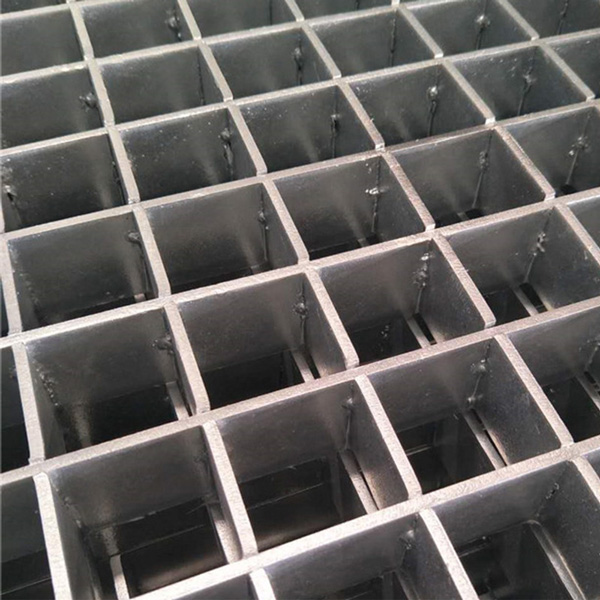

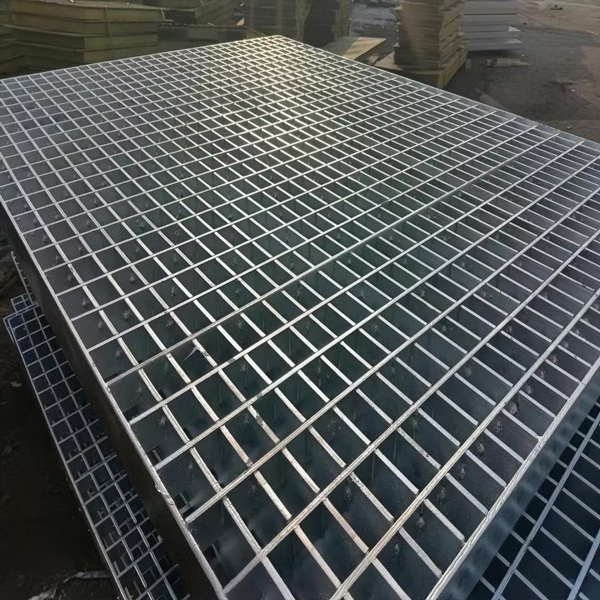

· Steel Grating: Manufactured by welding flat steel and bars at specified distances, providing high strength, light structure, and excellent anti-corrosion resistance via hot-dipped zinc coating.

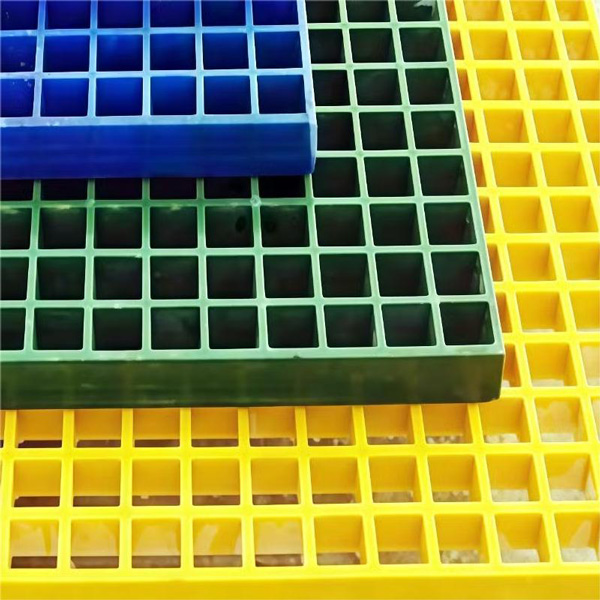

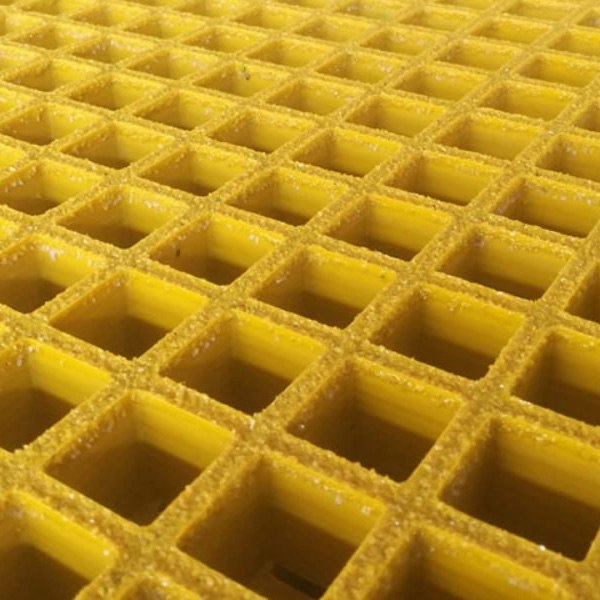

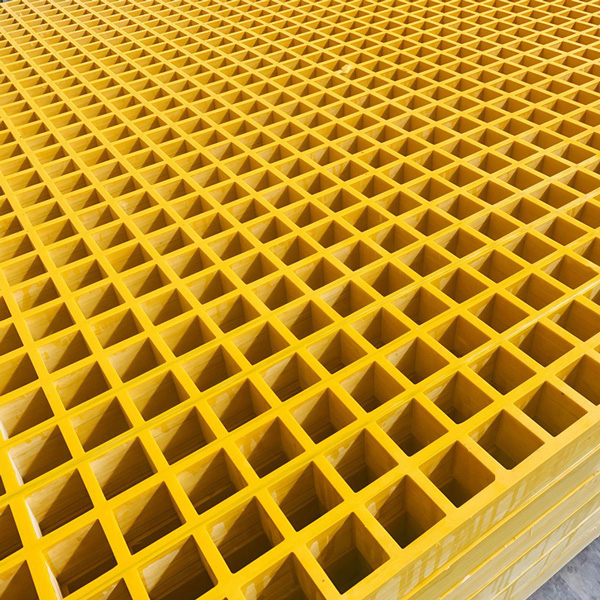

· FRP Grating: A structural panel using high-strength E-Glass roving as reinforcing material and thermosetting resin as matrix. It is ideal for corrosion circumstances, offering fire resistance, anti-skid properties, and light weight.
· Steel Grating: High bearing capacity, convenience for loading, and widely used as platform plates, ditch covers, and stair treads.

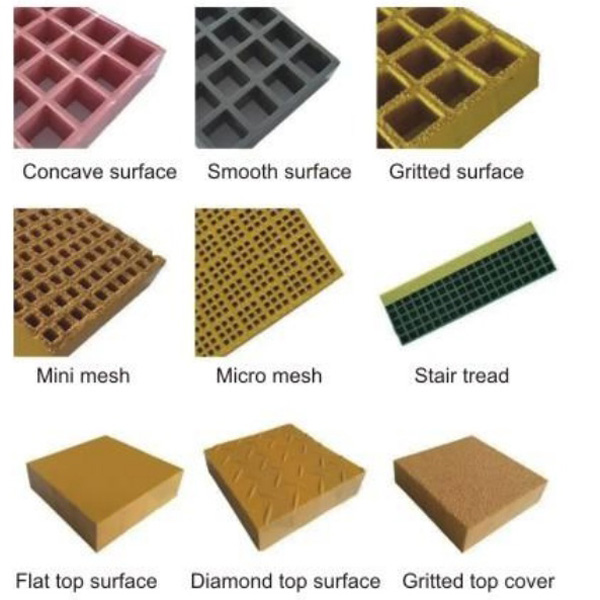

· FRP Grating: Superior corrosion resistance in oil industry, power engineering, and water treatment. Features various surfaces like concave, smooth, gritted, or diamond top cover for safety.
o Bearing Bar: 25x3mm, 30x5mm, 40x5mm (Range: 20x5 to 75x8mm).
o Bearing Bar Pitch: 30mm, 40mm.
o Cross Bar Pitch: 50mm, 100mm.
o Surface Treatment: Hot-dip galvanized (Standard).
o Thickness: 25mm, 30mm, 38mm.
o Mesh Size: 38x38mm, 40x40mm.
o Panel Size: 1220x3660mm, 1000x4000mm.
o Surface Styles: Concave, Gritted, Mini-mesh, or Micro-mesh.
